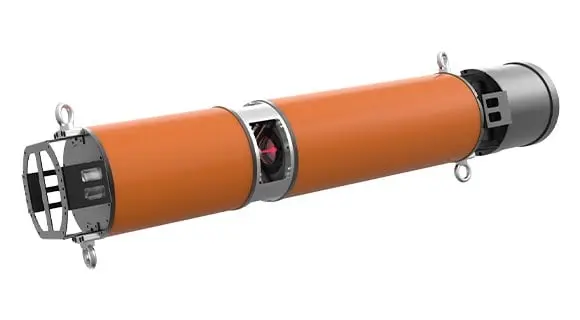

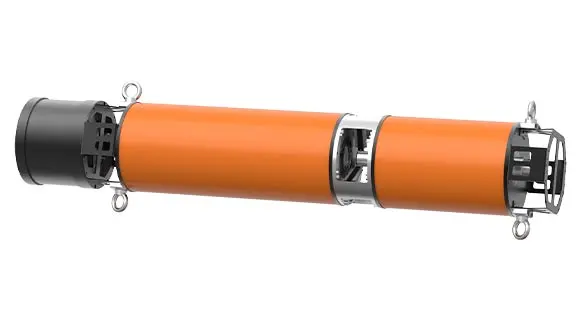

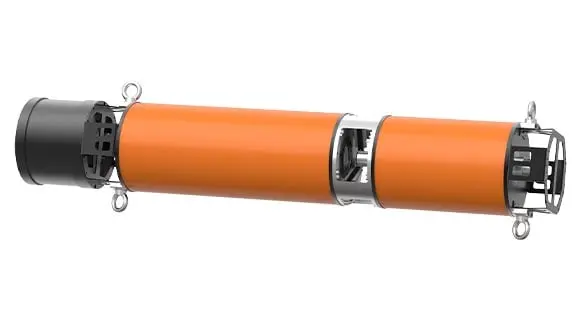

DeepSizer 300

DeepSizer 300 is a submersible particle size analyzer designed for intelligent sediment monitoring. It measures concentration (0.001–100 g/L) and particle size (0.1–2000 μm) directly in rivers, lakes, estuaries, and coastal waters. Powered by six core technologies—including two patented innovations—it ensures high accuracy, adapts to varying conditions, and delivers long-term reliability even under extreme turbidity.

Features and Benefits

• ● Measures a broad concentration range (0.001 - 100 g/L) and particle sizes from 0.1 to 2000 µm, delivering high-precision data across diverse water bodies.

• ● Measures additional parameters: depth, temperature, and conductivity.

• ● 80-detector array: detects light signals from 0.0163° to 42°.

• ● Patented core technologies: incorporate Differential Path Technology and Adaptive Path Technology, ensuring measurement accuracy and superior environmental adaptability.

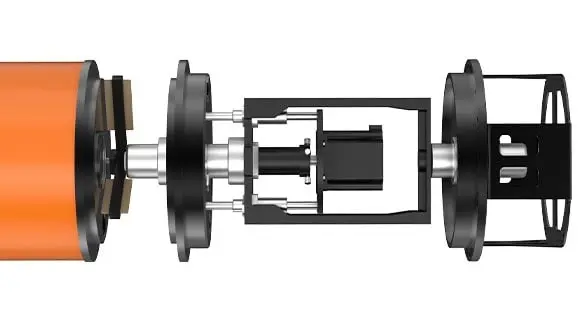

• ● Automatic optical window cleaning system: removes deposits and contaminants from optical windows, keeping the instrument in optimal condition.

• ● Offers three transmission modes—wired, wireless, and offline—to adapt to diverse monitoring scenarios.
