Using the BeNano 180 Zeta to Measure the Zeta Potential of Silica Suspension

2022-01-11Application Note

BeNano 180 Zeta precisely measures nano-silica zeta potential. Repeatability enables quantitative stability comparison & product quality control.



Product BeNano Series
Industry Chemicals
Sample Silica Suspension
Measurement Type Zeta Potential
Measurement Technology



Jump to a section:






Introduction



Nanoscale silicon dioxide has significant versatility. It can be used as an abrasive when polishing the semiconductor surface, and coating material due to its excellent surface performance. Widely applied in the areas of rubber, plastic, steel, and solar energy, it improves the reinforcement, shear resistance, and thixotropy etc.



In 1968, with the development of chemistry, Stober found that nano-silica spheres, whose particle size is near to monodisperse ones, can be obtained at room temperature by stirring the mixture of ammonia in different proportions and the tetramethylsilane dispersed in ethanol solution. There are lots of situations in which nano-silica is dispersed in liquid when used. Therefore, the measurement of zeta potential is essential, due to the purpose of understanding the stability of the system and improving the quality of products.



In this application note, we use the BeNano 180 Zeta nanoparticle size and zeta potential analyzer from Bettersize to measure the zeta potential of nano-silica from different batches dispersed in the aqueous environment.



Theory and Instrumentation



The BeNano 180 Zeta (Bettersize Instruments Ltd.) is equipped with a solid-state laser with a wavelength of 671 nm and a power of 50 mW as the light source. By applying an electric field to the sample, the charged particles are driven to electrophoresis. When the laser irradiates the sample, the frequency of the scattered light shifts from the origin due to the electrophoretic movement of the particles. An avalanche photodiode (APD) detector is used to collect scattered light signals at 12°. By using phase analysis light scattering (PALS) technology, the BeNano 180 Zeta is capable of detecting the zeta potential of samples even with low electrophoretic mobility.



Experiment



Zeta potential of four nano silica slurry samples was measured at the original concentration (solid content of 10%) and 30 times dilution in water.



Each sample was measured at least three times to ensure the repeatability of the results and obtain the standard deviation of the results.



Results and Discussion



With PALS technology, the zeta potentials of four nano-scaled silica suspensions are obtained. Figure 1-4 shows the phase plot of each measurement, the slope of which refers to the frequency shift caused by electrophoresis. As can be seen in the figures, each phase plot has a clear slope and shows a good signal-to-noise ratio.

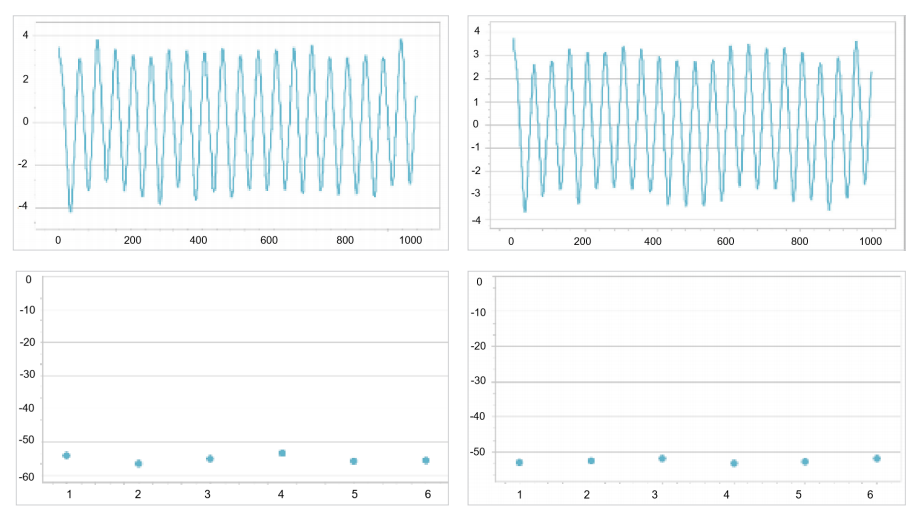

Figure 1. The phase plot and zeta potential trend of sample 1# with original concentration (left) and diluted by 30 times (right)

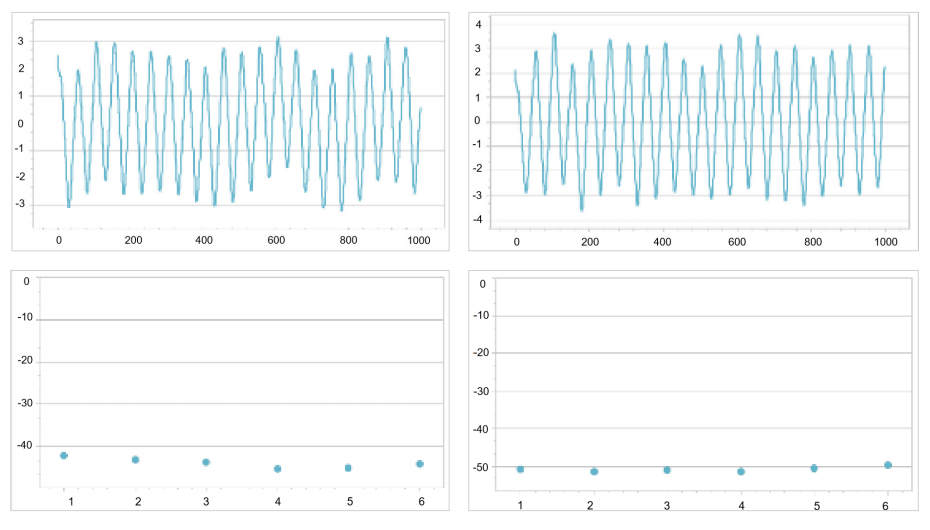

Figure 2. The phase plot and zeta potential trend of sample 2# with original concentration (left) and diluted by 30 times (right)

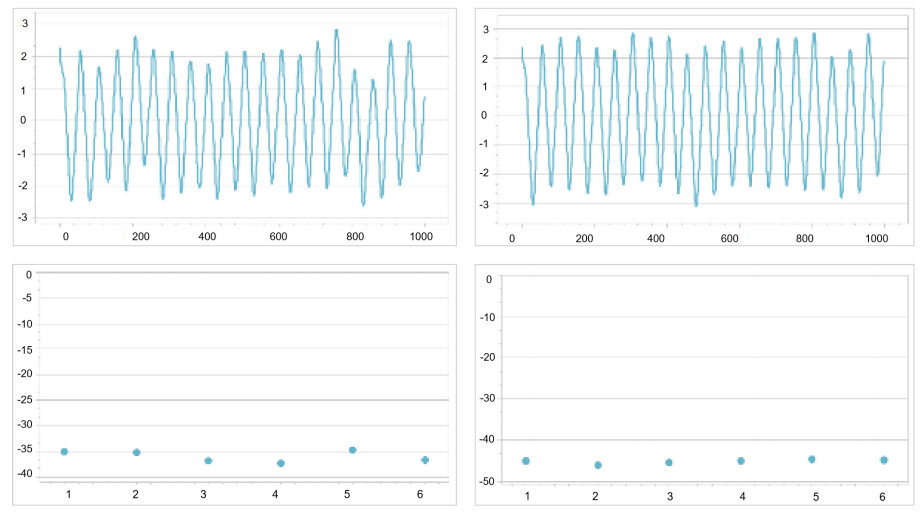

Figure 3.The phase plot and zeta potential trend of sample 3# with original concentration (left) and diluted by 30 times (right)

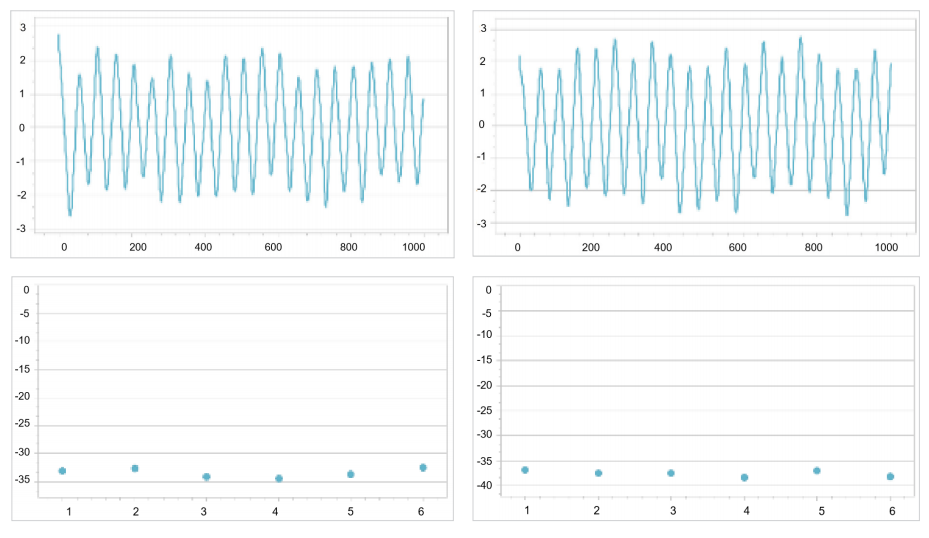

Figure 4. The phase plot and zeta potential trend of sample 4# with original concentration (left) and diluted by 30 times (right)



As can be seen, the zeta potentials are negative, demonstrating negative charge on the particle surface. The consistent zeta potential trends, as well as relatively small standard deviations, show excellent result reproducibility.



Table 1. The zeta potential results of silica samples

Sample Zeta potential (stock solution) (mW) Zeta potential (30 times dilution) (mW)
1#
-55.08±1.18
-52.48±0.56
2#
-43.90±1.2
-50.85±0.64
3#
-35.98±1.07
-45.22±0.50
4#
-33.40±0.77
-37.52±0.56




Given that the zeta potentials of all samples are high (>30 mV), the samples are less likely to form aggregates under these circumstances. By comparing with each result, we can conclude that sample 1# and sample 2# have the highest zeta potentials, followed by sample 3#, and the lowest is sample 4#. Hence, samples 1# and 2# are, quite possibly, most stable among the four silica suspensions. In addition, after being diluted 30 times, samples 2# and 3# have much larger absolute values of zeta potentials, thereby indicating better stabilities than those of the stock solutions.



Conclusions



Zeta potential measurements of four nano-silica suspensions, with high concentration and 30-times dilution by pure water, were well carried out with the BeNano 180 Zeta. The results show good repeatability and, most importantly, allow for stability comparison between different batches or formulations so that product quality can be controlled and monitored in a quantitative way.
