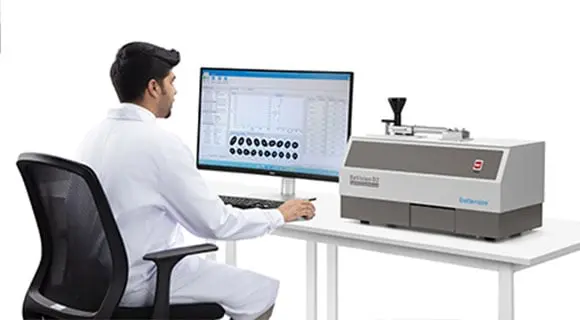

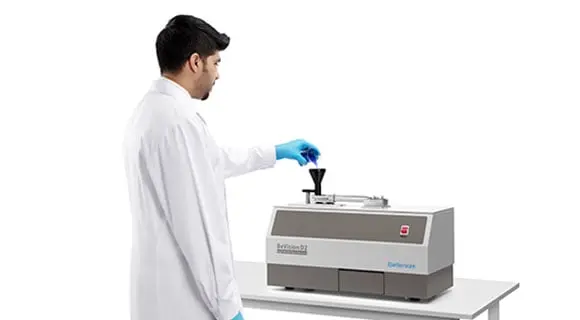

BeVision D2

Der BeVision D2 bietet eine effiziente Lösung für die Größen- und Formanalyse von trockenen, gut fließfähigen Pulvern oder Granulaten. Zehntausende von Partikeln können mit einem BeVision D2 innerhalb von drei Minuten gemessen werden. Durch die Kombination einer Hochgeschwindigkeitskamera mit einem präzisen telezentrischen Objektiv ist das BeVision D2 in der Lage, die Größe und Form von Partikeln im Bereich von 30 - 10.000 μm effizient zu analysieren.

Funktionen und Vorteile

  • ● Messbereich: 30 - 10.000 µm
  • ● 24 verschiedene Parameter für Partikelgröße und -form
  • ● Hoher Probendurchsatz: Messung von 10.000 Partikeln innerhalb von 3 Minuten
  • ● Hervorragende Reproduzierbarkeit
  • ● Ergebnisse in Übereinstimmung mit ISO 9276-6
  • ● Vollständig automatisierter Betrieb
  • ● Leistungsstarke Software bietet eine umfassende Bewertung
  • ● Vergleichbar mit Siebergebnissen

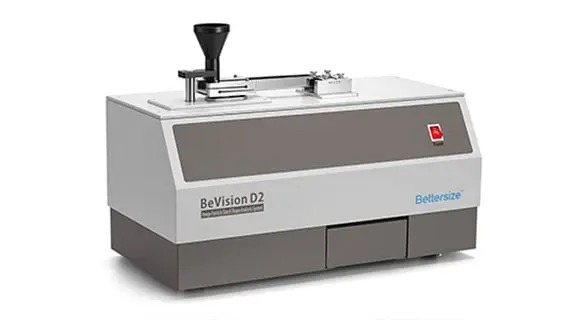

dynamic image analyzer
BeVision D2
BeVision D2
BeVision D2
BeVision D2
BeVision D2
123
dynamic image analyzer
BeVision D2
BeVision D2
BeVision D2
BeVision D2
BeVision D2

Video

How to Install and Operate BeVision D2 Video play

BeVision D2 | A Precise Vision of Particles Video stop

What is Image Analysis? Fundamentals of BeVision Series Video stop

Overview of BeVision Series | Precision in Particle Vision Video stop

Überblick

1) Warum Bildanalyseverfahren?





  • Einfach
    Erfassen Sie ein Bild der Partikel, identifizieren Sie die Partikel und messen Sie dann ihre Größe und Form. Jeder Schritt der Bildanalyse ist einfach und klar.
    •




  • Analyse der Form
    Auf der Grundlage einer direkten Ansicht der Partikel ist es möglich, nicht nur die Größe der Partikel, sondern auch ihre Form zu analysieren.
    •




  • Sehen ist Glauben
    Die Bildanalysemethode bestimmt die Größe und Form jedes einzelnen Partikels und summiert sie anschließend zu einer Statistik auf. Details zur Verteilung der Partikelgröße oder -form können genau angegeben werden.
    •




2) Warum die dynamische Bildanalysemethode?





  • Wirkungsgrad
    Ein kontinuierlicher Partikelstrom, der die Messzone durchläuft, trägt zu einer höheren Effizienz der Messung bei.
    •




  • Empfindlichkeit für übergroße Partikel
    Die Methode der dynamischen Bildanalyse ist empfindlich gegenüber übergroßen Partikeln; es ist sogar möglich, die Größe übergroßer Partikel zu schätzen.
    •




  • Zuverlässige Ergebnisse
    Die maximale Anzahl der gemessenen Partikel gewährleistet die statistische Aussagekraft der Messergebnisse.
    •




3) BeVision D2 Hardware: Garantierte Genauigkeit und Effizienz für Sie





Um die Größe und Form von Partikeln in einer Vielzahl von Anwendungen zu messen, ist das BeVision D2 mit einer umfassenden Auswahl an Hardware ausgestattet. Je nach den Eigenschaften des Probenmaterials kann die Auswahl der besten Hardware dazu beitragen, die Größe und Form von Partikeln mit optimaler Genauigkeit und Effizienz zu messen.





BeVision D2 hardware





4) Parameter für Partikelgröße und -form：





  • Größenparameter
    Äquivalentdurchmesser: flächenäquivalenter Durchmesser、perimeteräquivalenter Durchmesser;
    Feret-Durchmesser: maximaler und minimaler Feret-Durchmesser, XLF ('Länge')
    Martin-Durchmesser: maximaler und minimaler Martin-Durchmesser;
    Legendre-Ellipse: Haupt- und Nebenachse
    •




BeVision-D2-Particle-Size-Parameters





  • Formparameter
    Größenunterschied in 2 Richtungen: Seitenverhältnis、L/W-Verhältnis、Ellipsenverhältnis;
    Rundheit und Rechteckigkeit: Kreisförmigkeit、Unregelmäßigkeit、Kompaktheit、Ausdehnung、Kastenverhältnis
    Konkavität der Kontur: Konkavität、Konvexität、Festigkeit;
    Für langgestreckte Partikel: Dehnung、Geradheit
    •




BeVision D2 Particle Shape Parameters





5) BeVision Software: Visualisierte Einblicke für Sie：




BeVision D2 Applications





6) Typische Anwendungen:



BeVision D2 Applications
