BT-Online2는 특허받은 Fourier & Inverse Fourier 광학 시스템을 채택하여, 높은 정확도의 측정 결과를 실시간으로 제공합니다. 총 92개의 검출기로 구성된 광학 시스템은 습식 측정 방식을 통해 0.02~2000μm 범위의 입자 크기를 정확하게 분석할 수 있습니다. 희석 시스템을 통해 고농도 시료의 분석도 가능하여, 다양한 산업 분야에서의 적용 범위를 획기적으로 넓혔습니다. 또한, 최대 4개의 생산 라인을 동시에 연결할 수 있어 설비 투자 비용을 절감하고, 공간 활용도를 높이며, 데이터 관리의 효율성까지 향상시킬 수 있습니다.
특징 및 장점
- ● 특허 받은 Fourier & Inverse Fourier 광학 시스템 적용으로 측정 정확도 대폭 향상
- ● 완전 자동 샘플링 기능 탑재로 현장 운영 효율성 극대화
- ● 최대 4개 생산 라인 동시 모니터링 가능, 설비 투자 비용 절감
- ● 내장형 희석 시스템으로 고농도 시료도 안정적으로 처리
- ● 고정밀 분석 성능, 공정 품질 향상에 기여
- ● 폐액 필터링 시스템 탑재로 유기용제 재사용 가능, 유지관리 비용 절감 및 친환경 운영 실현
개요

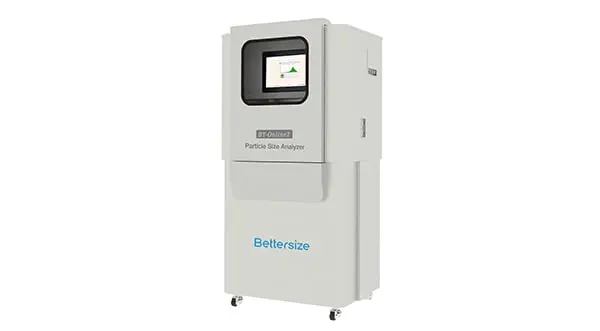

BT-Online2 – 습식 분쇄 공정을 위한 실시간 입도 분석 솔루션
BT-Online2는 습식 분쇄 라인에 최적화된 온라인 입도 분석 시스템으로, 실험실 수준의 정밀도와 자동화 기능을 갖춘 현장형 장비입니다.

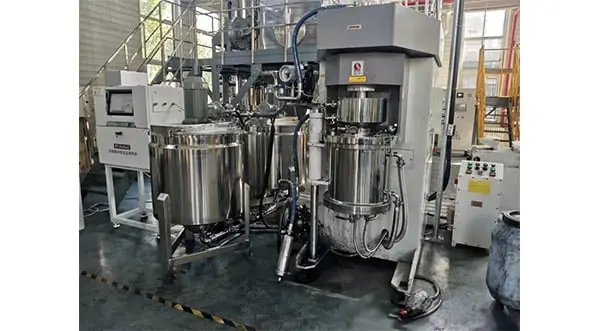

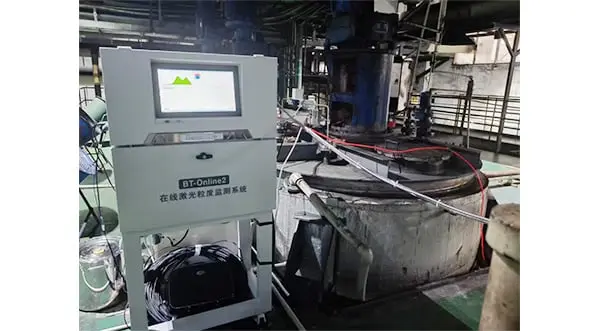

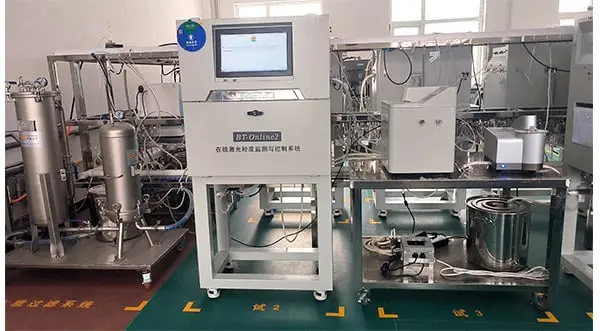

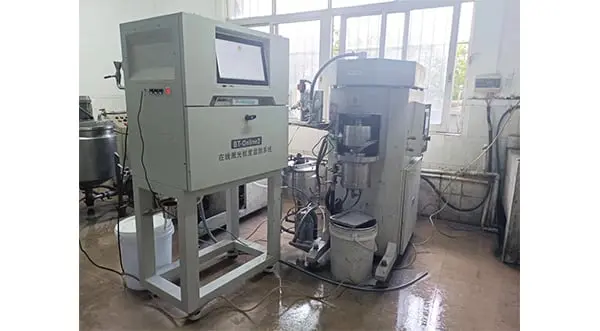

비드밀, 반응기 등 주요 장비 근처에 설치되어 시료 채취부터 측정, 배출까지 모든 과정을 자동으로 수행하며, 실시간 데이터를 기반으로 생산 공정의 품질을 안정화합니다.
측정 중 이상이 감지될 경우, 알림 기능을 통해 즉시 관리자에게 통보되며, 필요 시 제어 시스템과 연동하여 자동으로 공정 제어도 가능합니다. 이로써 품질 관리 수준을 한층 높이고, 작업자의 부담은 줄이며 생산 효율은 향상됩니다.
주요 측정 항목
-
입도 분포 트렌드
-
평균 입자 크기 (D[4,3], D[3,2])
-
대표 입도 지표: D10, D50, D90, D97, D98 등
주요 적용 산업
-
리튬이온 배터리 양극재 슬러리
-
의약품 제조
-
잉크/코팅
-
기타 습식 분쇄 기반 산업
BT-Online2의 핵심 기능
1. 다중 라인 동시 모니터링 (최대 4개)
-
하나의 장비로 최대 4개의 라인을 모니터링
-
설비 투자비 절감 및 공정 통합 효과
2. 내장 순환 분산 시스템
-
원심 순환펌프 + 초음파 분산기 탑재
-
자동 급/배수 및 세척 기능 포함
-
샘플의 균일한 분산과 안정적인 측정 보장
3. 유기용제 대응 (옵션)
-
폐액 필터링 시스템을 통해 유기용제 재사용 가능
-
비용 절감 및 친환경 생산에 기여
4. 정밀한 광학 시스템 (특허 등록)
-
Bettersize 특허 받은 푸리에/역푸리에 광학계 적용
-
92개 검출기를 통해 0.02~2000μm 범위에서 정확한 분석 실현
5. 완전 자동 운영 시스템
-
시료 채취부터 세척까지 자동화되어 운영 인력 최소화
-
오염 없는 측정 환경 유지 및 연속 운영 가능
6. 직흡식/복동식 샘플러 선택 가능
샘플의 채취, 배출, 세척까지 전자동으로 수행되는 직흡식 또는 복동식 샘플러를 선택하여 사용할 수 있습니다.
복동식 샘플러는 시료 채취 시 실린더가 하강하여 샘플을 챔버로 도입하고, 이후 자동으로 측정을 시작합니다. 측정이 완료되면 자동 역세척 기능이 작동하여 배관 내부의 잔류 시료를 완전히 세척 및 배출합니다. 이러한 자동 세척 시스템은 교차 오염을 방지하며, 측정 환경을 항상 청결하게 유지하여 제조 라인의 품질 안정성 확보에 기여합니다.
또한, 방폭 환경이 요구되는 생산 현장에서도 안전하게 사용할 수 있도록 설계되어 있습니다.
복동식 샘플러
7. 유연한 모니터링 항목 설정
-
D10, D50, D90 등 원하는 데이터를 선택하여 실시간 전송 가능
-
4–20 mA 및 Modbus 통신 지원 → DCS 연동으로 완전 자동 제어 실현
8. SOP 기반 자동 측정
-
미리 설정된 조건을 불러와 버튼 한 번으로 측정
-
설정 오류 방지 및 반복 측정 시 정확도 향상
측정 사례
측정 과정
성능 평가
